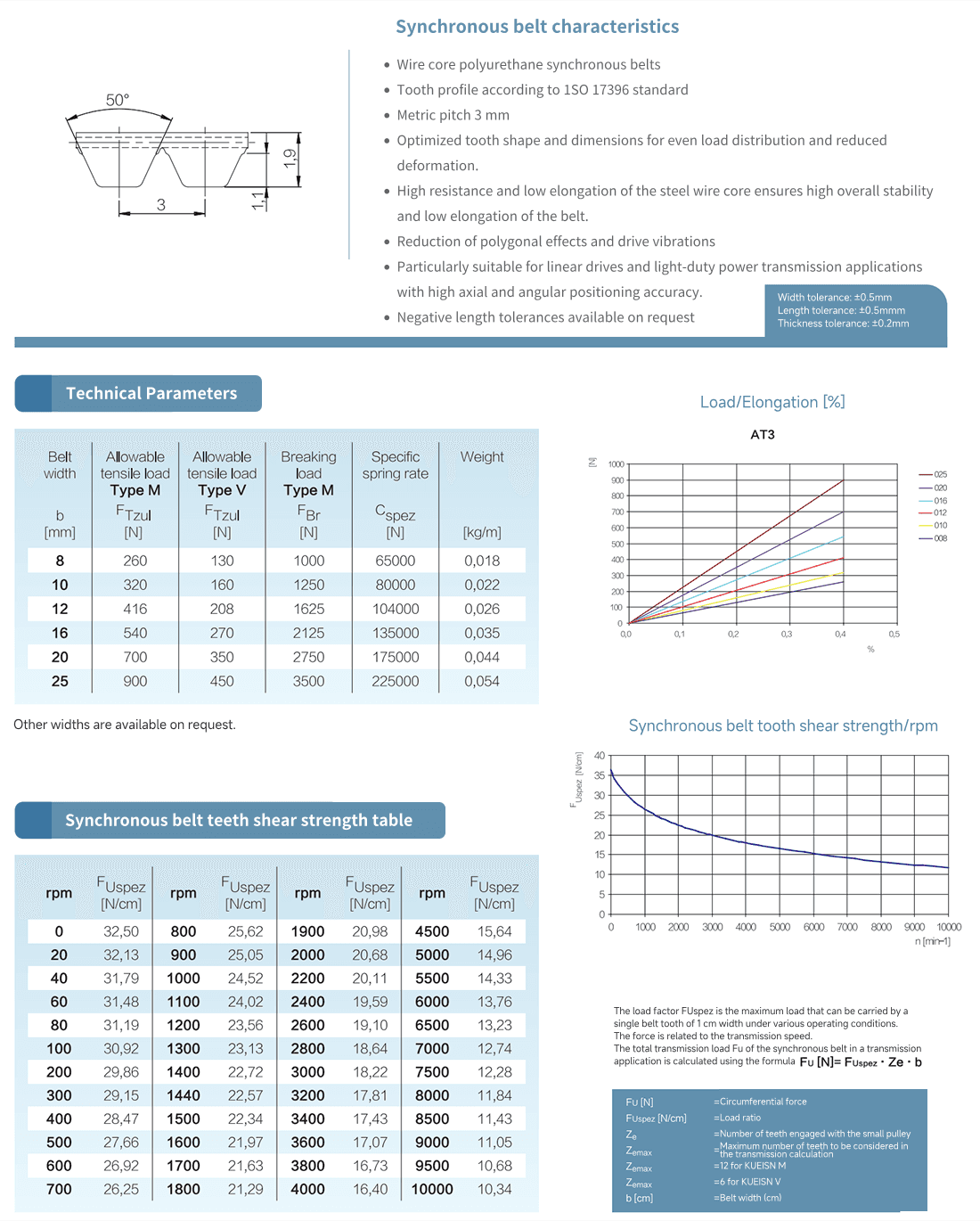

Characteristics:
1.Wire core polyurethane synchronous belts
2.Tooth profile according to IS0 17396 standard
3.Metric pitch 3 mm
4.Optimized tooth shape and dimensions for even load distribution and reduced deformation.
5.High resistance and low elongation of the steel wire core ensures high overall stability and low elongation of the belt.
6.Reduction of polygonal effects and drive vibrations
7.Particularly suitable for linear drives and light-duty power transmission applications with high axial and angular positioning accuracy.
8.Negative length tolerances available on request
