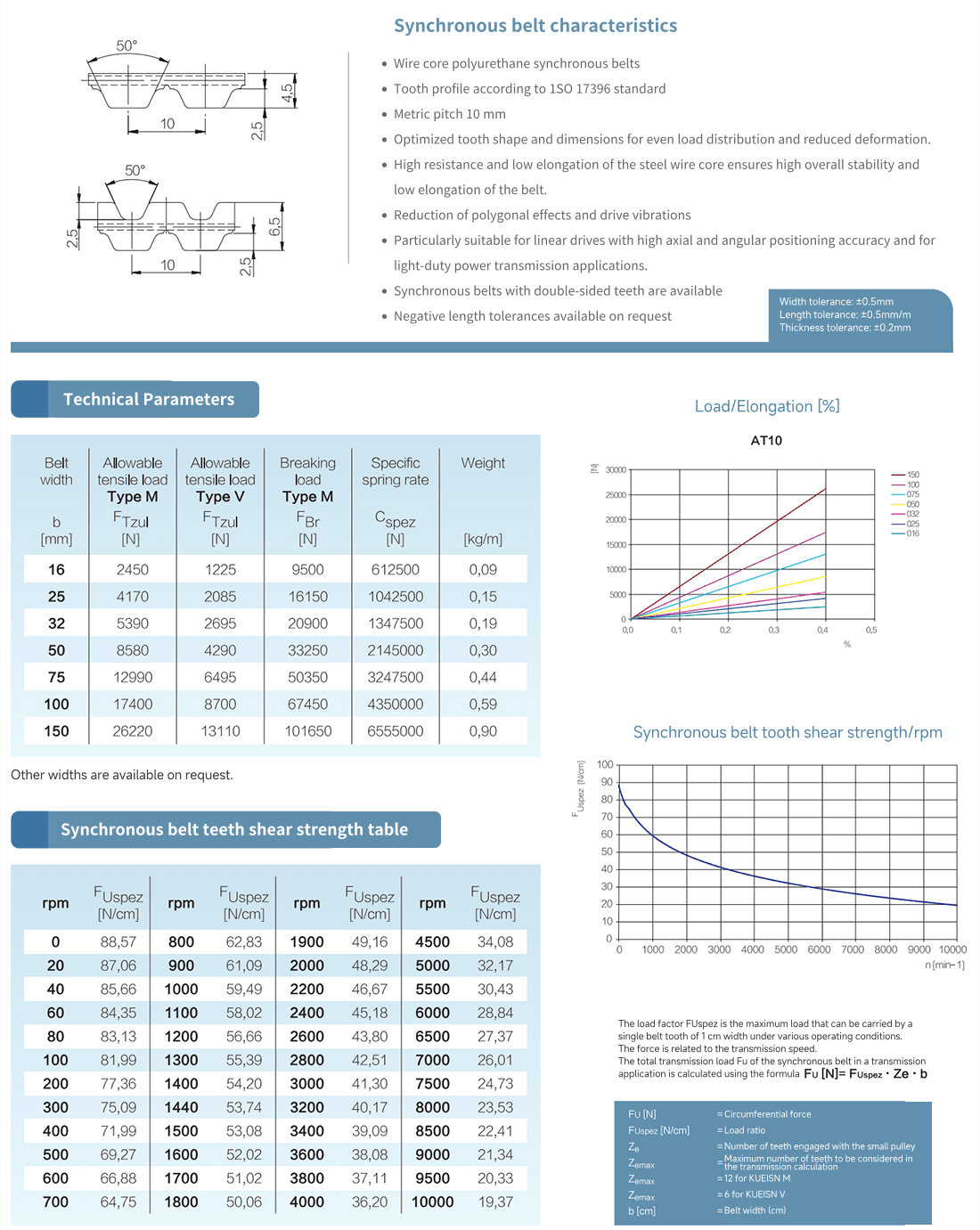

Characteristics:
1.Wire core polyurethane synchronous belts
2.Tooth profile according to IS0 17396 standard
3.Metric pitch 10mm
4.Optimized tooth shape and dimensions for even load distribution and reduced deformation.
5.High resistance and low elongation of the steel wire core ensures high overall stability and low elongation of the belt.
6.Reduction of polygonal effects and drive vibrations
7.Particularly suitable for linear drives with high axial and angular positioning accuracy and for light-duty power transmission applications.
8.Synchronous belts with double-sided teeth are available
9.Negative length tolerances available on request
