Rubber timing belt adopts imported high quality neoprene as the main raw material, with a variety of different uses of accessories; The skeleton material is imported high-quality glass fiber rope; The toothed surface is protected by nylon 66 high elastic cloth.

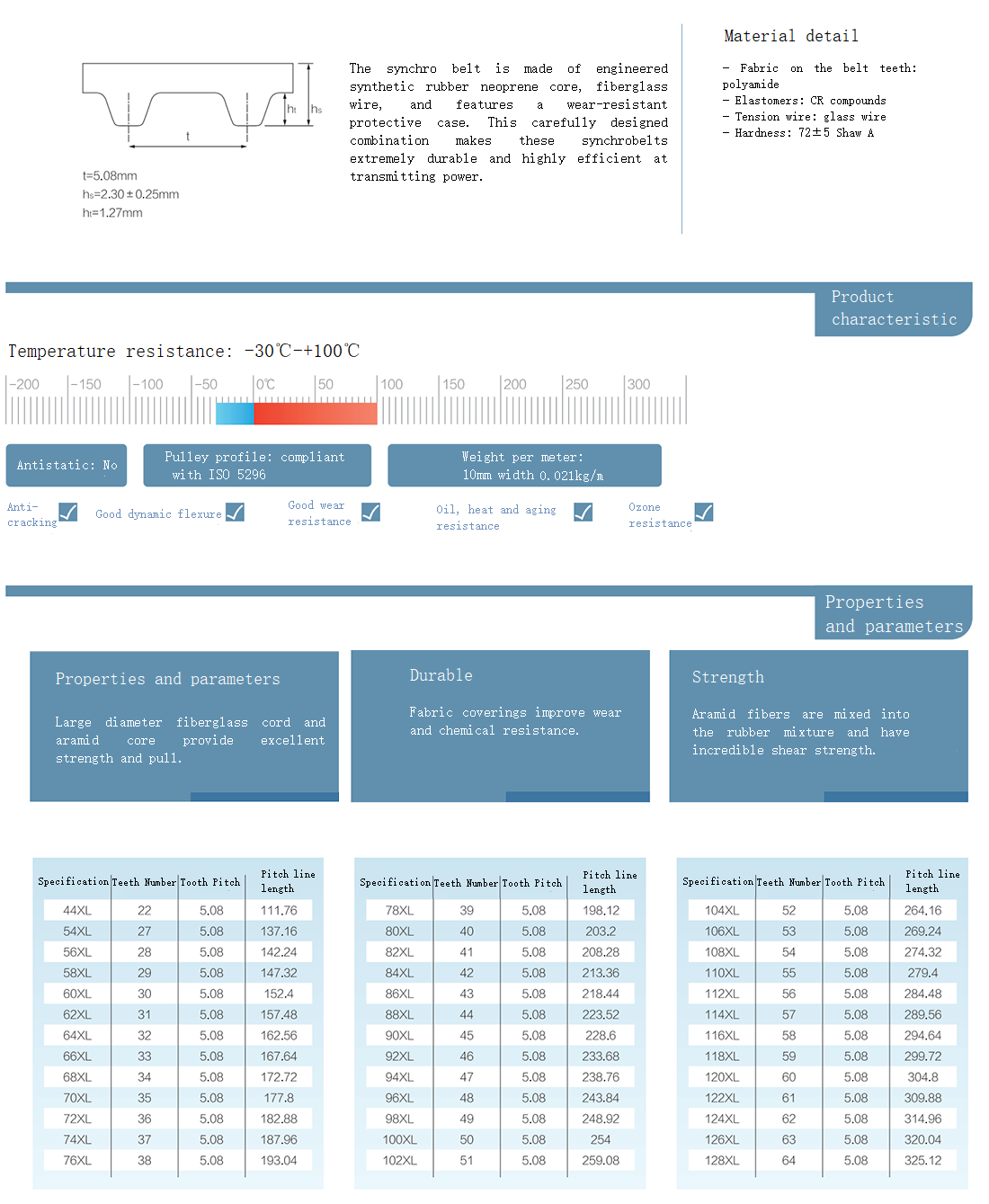

Raw material

Rubber timing belt adopts imported high quality neoprene as the main raw material, with a variety of different uses of accessories; The skeleton material is imported high-quality glass fiber rope; The toothed surface is protected by nylon 66 high elastic cloth.

Performance

Rubber synchronous belt has the characteristics of good dynamic flexibility, good anti-cracking performance, excellent ozone performance, aging resistance, heat resistance, oil resistance, wear resistance and so on. Neoprene synchronous belt is widely used in textile, automobile, chemical fiber, cigarette, paper making, printing, chemical machinery and equipment; In recent years, mining metallurgy, iron and steel machinery, medical equipment demand is increasing.

The synchronous belt drive is composed of a closed annular belt with equally-spaced teeth on the inner circumferential surface and the corresponding pulley. When moving, the belt teeth mesh with the tooth slots of the pulley to transmit motion and power, which is a kind of meshing transmission, so it has various advantages of gear transmission, chain transmission and flat belt transmission. Synchronous belt drive has accurate transmission ratio, no slip difference, can obtain constant speed ratio, precision transmission, stable transmission, shock absorption, low noise, large transmission ratio range, generally up to 1:10, the allowable linear speed can reach 50m/s, the transmission efficiency is high, generally up to 98%-99%. Transmitting power ranges from a few watts to hundreds of kilowatts. The utility model has the advantages of compact structure, small tension force, no lubrication and no pollution, and is also suitable for multi-shaft transmission, so that the utility model can work normally under the condition that pollution is not allowed and the working environment is worse.

Rubber synchronous belt according to the material can be divided into neoprene plus fiber rope synchronous belt, polyurethane plus steel wire synchronous belt, according to the shape of the tooth is mainly divided into trapezoidal teeth and circular tooth two categories, according to the arrangement of the tooth surface can be divided into single-sided tooth synchronous belt and double-sided tooth synchronous belt.
